RPS-PDU-1006

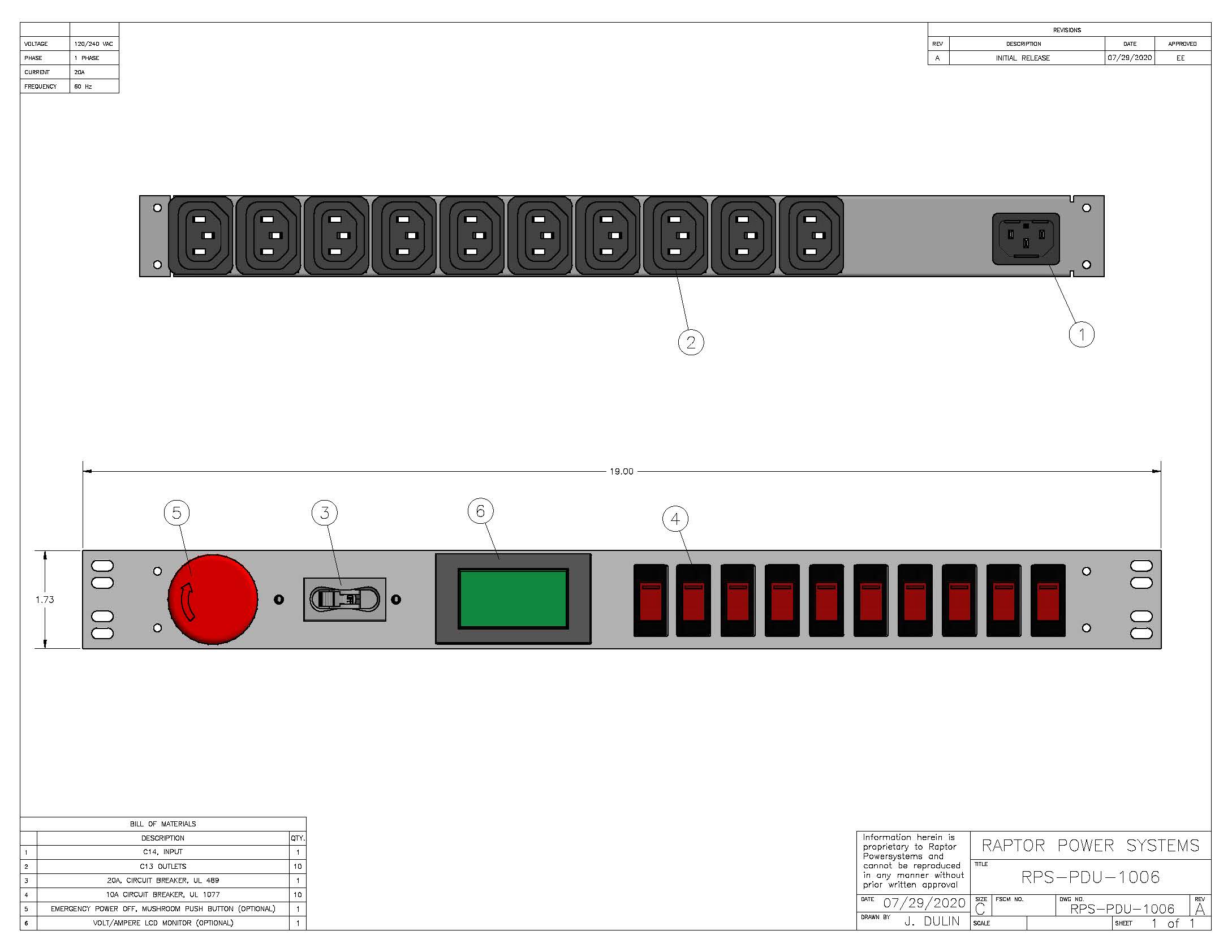

20A, 120/240V, 1U Rack Mount PDU | 10× C-13 Outlets | C-14 Inlet
This 20A, 1U PDU has 10× C-13 outlets, a C-14 inlet with a 6ft power cord, and switched outputs. Accepts 120/240VAC single-phase input.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | No |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 8" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 20 Amp Circuit Breaker |
| Input Voltage | 120VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Single Phase (line, neutral, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 20 Amps |
| Input Connector | C-14 |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 1 Outlet per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 10 x 10 Amp Switched Circuit Breakers |
| Output Connectors | 10 x C-13 |
| Output Phase | Single Phase (line, neutral, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1 |
| Operating Temperature | 0C - 60C |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below; expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
All PDUs, standard or custom, come with a full 2-year warranty on parts and labor. Raptor Power will, at its discretion, repair or replace any product found to be defective. Phone support is included during the 2-year warranty period.
Don't see what you need? Go custom! Every unit can be customized to meet your needs or we can design from the ground up. Contact us for details.
