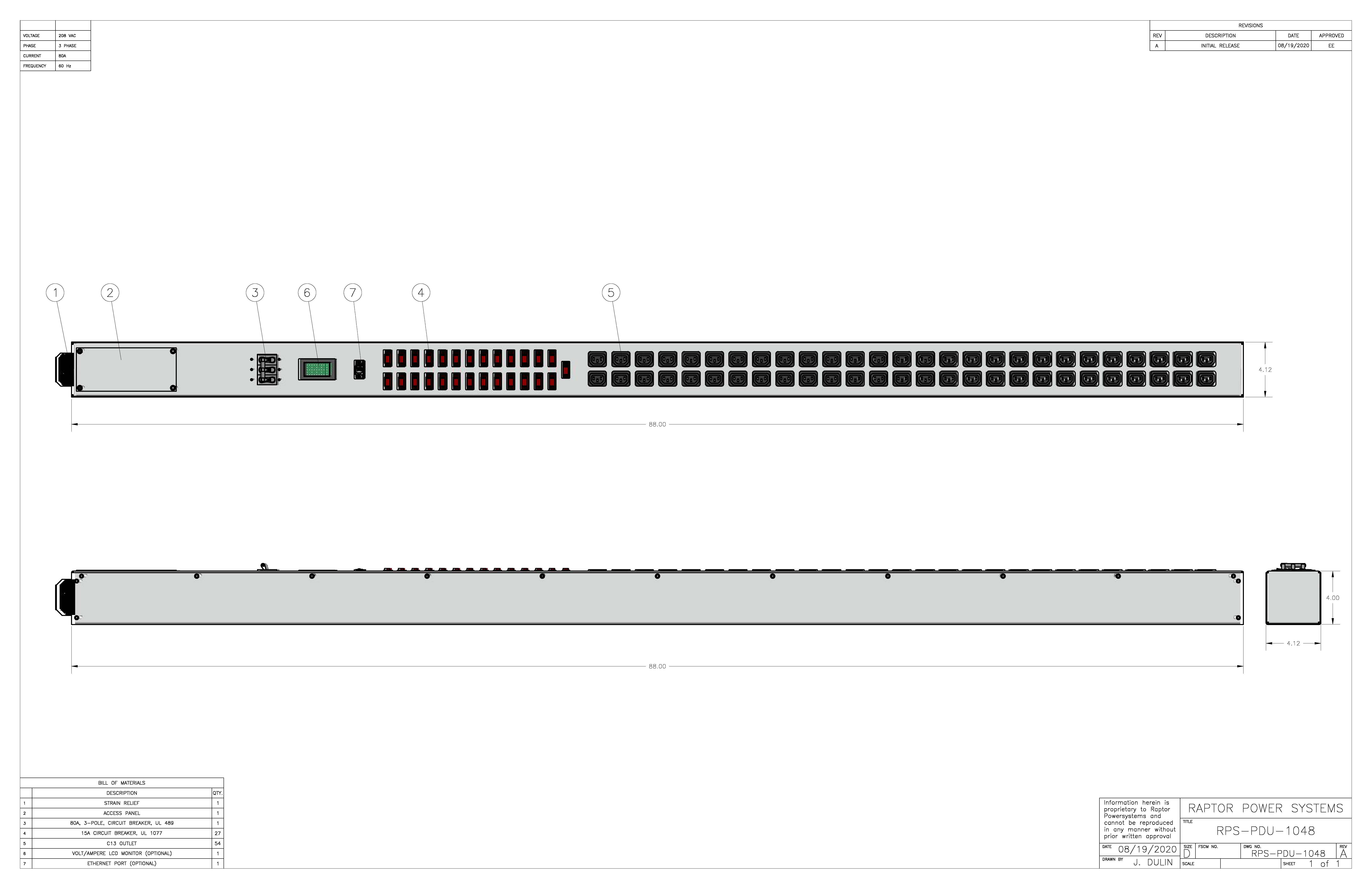

RPS-PDU-1048
80A, Three-Phase DELTA, 0U Vertical PDU | 54× C-13 Outlets
This 80A, 0U vertical PDU has 54× C-13 outlets, a 208VAC three-phase DELTA hardwire input, a switched 80A circuit breaker, and 27× 15A output breakers with dual-phase output.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | No |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 4" x 4" x 88" |
| Enclosure Style | 0U Vertical Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | 80A Switched Circuit Breaker |
| Input Voltage | 208VAC Three Phase DELTA |
| Lightning Protection (MOV) | No |
| Phase | Three Phase DELTA (line, line, line, ground) |
| Power Cord | N/A |
| Total Current | 80 Amps (Three Phase, 240A of Single Phase Load) |
| Input Connector | Internal Hardwire |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 2 Outlets per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 27 x 15A Switched Circuit Breakers |
| Output Connectors | 54 x C-13 |
| Output Phase | Dual Phase (line, line, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled |
| Operating Temperature | 0C - 60C |
| TAA Compliant | No |
PDUs are built to order. Lead times are based on production volume. Typical lead times are below; expedited orders are available, contact us for details.
MIL SPEC/SHIPBOARD PDUs - 6 Weeks ARO
COMMERCIAL/INDUSTRIAL PDUs - 20 Business Days
CRYPTO MINING PDUs - 20 Business Days
Have a question about the current lead time or expedited service for a unit? Use our live chat to speak with a production representative.
Raptor Connect, our proprietary hardware/software package provides world-class remote control and monitoring. Control individual outlet, monitor current, track current consumption over time, and more via a webpage interface or HTTP API.
Raptor Connect can be optionally integrated into almost all of Raptor's products. If you do not see an option to select Raptor Connect for a PDU, contact us for details.
All PDUs, standard or custom, come with a full 2-year warranty on parts and labor. Raptor Power will, at its discretion, repair or replace any product found to be defective. Phone support is included during the 2-year warranty period.
Don't see what you need? Go custom! Every unit can be customized to meet your needs or we can design from the ground up. Contact us for details.
